Definition

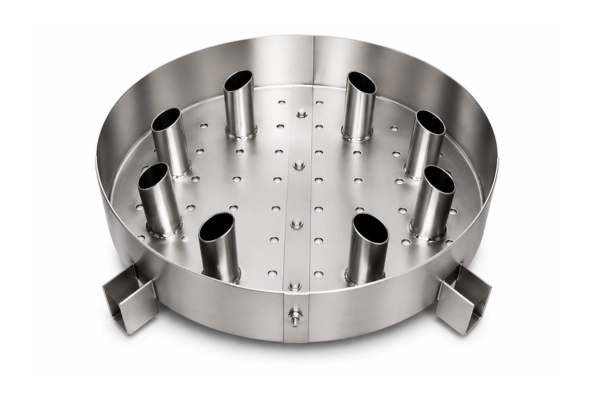

A liquid distributor is a device used to distribute liquid evenly across the cross-sectional area of a packed bed or mass transfer column.
Its primary purpose is to minimize the amplification effects caused by poor liquid distribution and to ensure that liquid is uniformly introduced onto the top of the packing layer. Proper liquid distribution helps maximize packing efficiency and improve overall mass transfer performance.
Liquid distributors are commonly used in packed towers and other separation equipment where uniform liquid flow is essential for stable operation.
Common Types of Liquid Distributors
Several liquid distributor designs are used in industrial applications, including:
- Trough distributors
- Pan distributors
- Plate distributors
The selection of a distributor depends on process requirements, tower dimensions, liquid properties, and operating conditions.
Different designs offer different advantages in terms of liquid distribution quality, operating flexibility, and hydraulic performance.
Industrial Applications
Liquid distributors are widely used in mass transfer equipment such as:
- Packed distillation columns
- Absorption towers
- Extraction columns
- Scrubbers
- Reactive distillation systems
In these applications, the distributor ensures that liquid reaches the packing surface uniformly, allowing efficient contact between liquid and gas phases.
Without proper liquid distribution, portions of the packing may become underutilized, reducing separation efficiency and increasing operating costs.
Engineering Considerations
The performance of a liquid distributor directly affects column efficiency.
Engineers typically evaluate:
- Distribution quality
- Turndown capability
- Liquid flow rate
- Pressure drop
- Tower diameter
- Packing type
A well-designed liquid distributor helps prevent channeling, improves wetting of the packing surface, and promotes more uniform mass transfer throughout the column.
For large-diameter towers, distribution quality becomes increasingly important because even small maldistribution problems may significantly reduce column performance.
Industrial Significance
Although often considered a secondary tower component, the liquid distributor is one of the most important internals in a packed column.
The effectiveness of structured packing or random packing depends heavily on how uniformly liquid is introduced into the packing bed. Even high-performance packing materials cannot achieve their designed efficiency if liquid distribution is poor.
For this reason, liquid distributors are frequently regarded as critical components in separation processes involving distillation, absorption, extraction, and reactive distillation.
