Column Internals

Name: Column Internals
Brand: Shanghai DODGEN Chemical Technology Co., Ltd.

A strict quality management system guarantees the product quality and delivery time of the project.

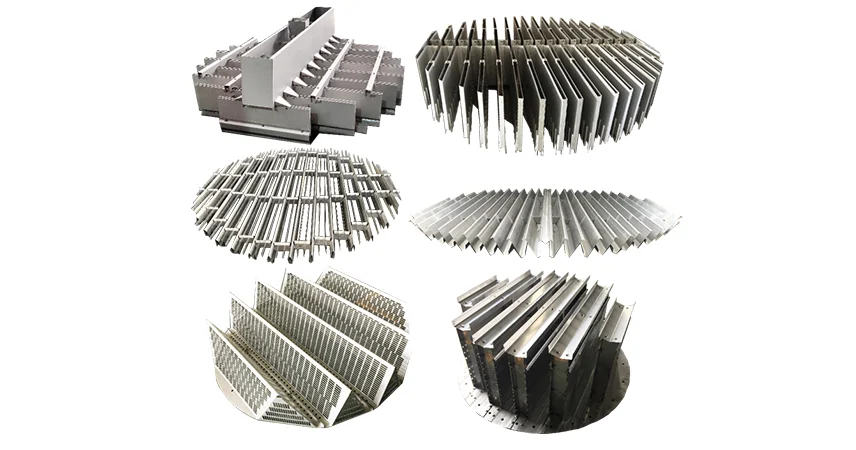

Technology Introduction Of Column Internals

The tray design and manufacture technology by DODGEN has realized the breakthrough of low pressure drop, high tray efficiency, anti-blocking, high vapor-liquid/liquid-vapor ratio and high operating flexibility. As one of the column internals manufacturers, we provide our customers with reliable hydraulic design, cost-effective tray selection and rich tray types. DODGEN provides high-quality column internals, distillation column internals, and process tower internals, ensuring optimal performance and efficiency in separation processes for chemical, petrochemical, and refining industries.

Characteristics of Column Internals

Liquid distributors with liquid load from 0.01m3/m2h to more than 200m3 / m2h;

High operating turndown and suitable for fouling systems including suspension, emulsion and dust. Both gas and liquid can be distributed well;

Different types of gas distributors and flash feed systems according to different gas velocities;

Different types of collectors according to different applications, such as vane collectors, chimney tray collectors, collectors/redistributors, etc;

Different types of support grids ( for structured packing & random packing);

Three-in-one distributors(support grid + collector + distributor);

DODGEN has a 16 * 16m distributor test platform.

DODGEN Introduction

Products

Process Technology

 

Process Equipment

 

Separation Equipment 

Extraction Tower

Falling-film Evaporator

Gas-liquid Separator

Structured Packings

Column Internals

Melt Crystallizer

Devolatilizer

Continuous Flow Reactor 

Static Mixer

Polymerization Reactor

Micro Reactor

Low-carbon Application

Bio-based Chemicals

New Energy & Storage

Resource Recycling

CO2-based Chemicals

Direct Air Capture

Applications of Column Internals

Chemical industry: OLEO, flavors & fragrances, Ethylbenzene (EB) / Styrene Monomer (SM), cyclohexanone / cyclohexanol, air separation
Petrochemical Industry: quench tower, C3 and C4 separation tower, xylene separation tower
Oil refining unit: Crude Oil tower, vacuum tower
Absorption and desorption: natural gas dehydration, CO2 and H2S absorption and stripper, ethylene oxide(EO) absorption and stripper, acrylonitrile absorber
